Ceiling Drywall Steel Stud And Track Roll Forming Machine U Channel For Building

Model Number : light keel roll forming machine

Certification : CE

MOQ : 1 set

Payment Terms : T/T, L/C

Supply Ability : 30 sets per month

Delivery Time : 45 days after receipt of buyer's deposit

Packaging Details : Packaging Details: 1. one 20ft container for loading one set machine with manual decoiler; 2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film; 3. Spare parts and some small parts packed in plastic tooling box; 4. All Components Fixed

Tile Type : Colored Glaze Steel

Thickness : 0.3--0.8mm

Dimension(L*W*H) : 4.5m*1.2m*1.2m

Roller material : 45# Forged Steel

Power(W) : 4+4KW

Suitable to process : Color Steel Plate

Control system : PLC Control

Warranty : 12 Months

Contact Now

Ceiling Drywall Steel Stud And Track Roll Forming Machine U Channel

Decoiler:

Usage: It is used to support the steel coil and uncoil it in a turntable way.

Inner diameter:350-450mm

Outer diameter:450mm

Coil width:300mm

Capacity:1.5T

Hydraulic oil pump

Advanced hydraulic system from Taiwan

Usage: It is used to provide power for cutting devices.

Power: 3kw

PLC control station

Usage: Automatic length and quantity measurement.

Screen: touch screen

Frequency:Delta

PLC control

PLC:Delta

Run out table

1 set with 3 meter’s long.

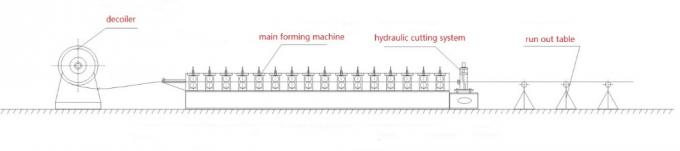

Process Flow

De-coiling →feedinig→forming→step-formed mechanism →cutting →product

Ceiling Drywall Steel Stud And Track Roll Forming Machine U Channel For Building

Parameter

1	Model No.	Keel Roll Forming Machine
2	Thickness	0.3-0.8mm
3	Coli material	GI
4	The bearing capacity of manual decoiler	6.5 tons
5	shaft material	45#steel
6	Out diameter	Customized
7	numbers of forming steps	Customized
8	transmission	chain transmission
9	Forming speed	10-15m/min
10	main motor power	3kw
11	voltage	380V50HZ Three-phase or as required
12	dimension	51.31.3
13	cutting	hydraulic cutting
14	blade material	Cr12 steel with quenched treated 60-62°c
15	control system	PLC(Delta)
16	length tolerance	±1mm
17	spare parts	1 easy demaged parts:conk 2pcs, fuse-link 4pcs 2 rubber mat: 1 pcs 3 bolt spanner: 1 pcs
18	The whole line including: Manual decoiler, roll forming machine, hydraulic station, hydraulic cutter, PLC control system, run-out table.

Ceiling Drywall Steel Stud And Track Roll Forming Machine U Channel For Building

Product Tags:

light steel keel roll forming machine

t bar roll forming machine

China Ceiling Drywall Steel Stud And Track Roll Forming Machine U Channel For Building wholesale

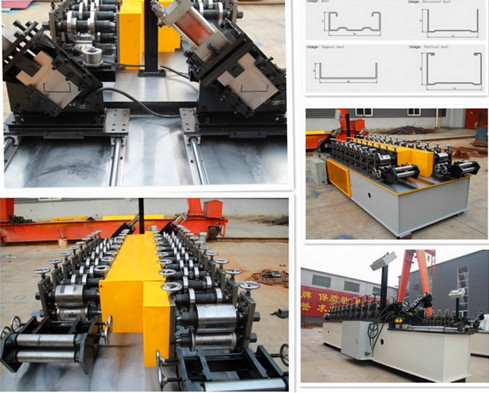

Ceiling Drywall Steel Stud And Track Roll Forming Machine U Channel For Building Images
