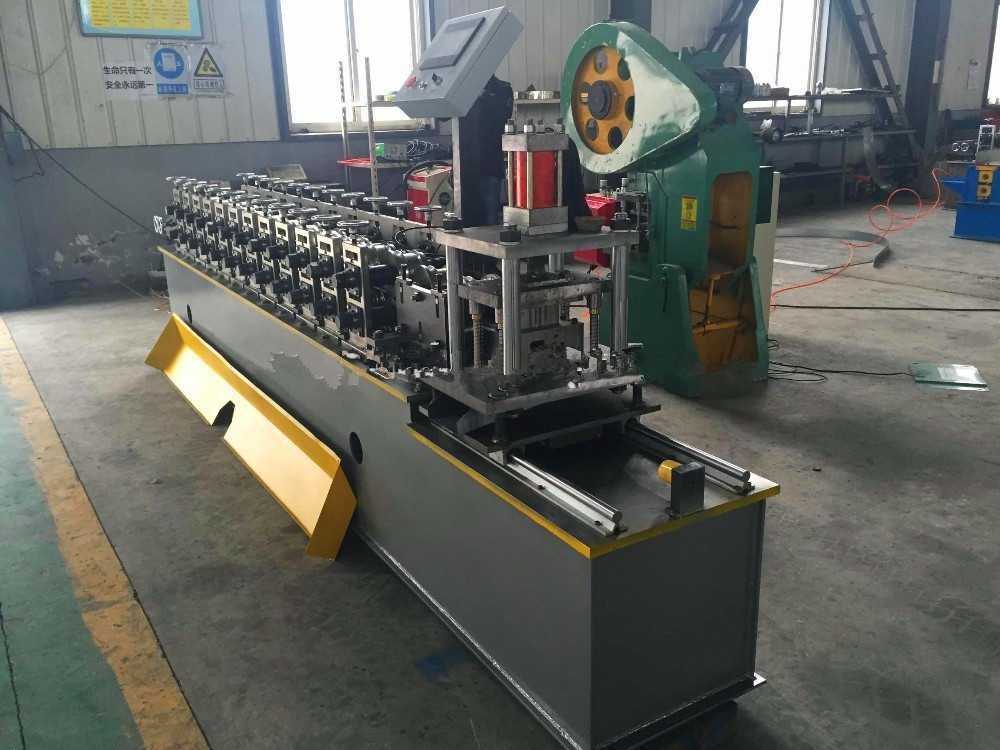

Steel Sheet Roll Forming Machine Shutter Door Frame Machinery 4KW Hydraulic Station Power

Model Number : shutter door

Certification : CE

MOQ : 1 set

Price : on discuss

Payment Terms : T/T, L/C, Western Union

Supply Ability : 20 sets per month

Delivery Time : within 30 working days after received deposit

Packaging Details : the Packaging Detail of roll forming machine door : Standard and safe export package, suitable for long term sea way shipping Delivery Detail: within 45 working days after down payment received

Type : Steel sheet

Feeding Thickness : 0.5-1.2mm

Installation Dimension:Thickness of Material: 0.3mm~1.0mm : 6.5m*1.5m*1.4m

Processing Speed : 8-12m/Min

Roll Forming Machine Roller Station : 11-20 Rollers

Material Expand Width : 1000-1250mm

Controlling System : PLC

HS Code : 84552210

Contact Now

Steel Sheet Roll Forming Making Machine Shutter Door Frame

1. Main Components
Decoiler -------------------------------------------------- 1 Unit
Feeding guide ------------------------------------------ 1 Unit
Main roll forming machine --------------------------- 1 Unit
Hydraulic cutting device ------------------------------ 1 Unit
Hydraulic Station --------------------------------------- 1 Unit
PLC computer control -------------------------------- 1 Unit
Output table ---------------------------------------------- 1 Unit
2. Technological process
Uncoiler-Feeding-Leveling-hydraulic punching-Hydraulic cutting-Roll forming-Output table
3. Technical drawing
Steel Sheet Roll Forming Machine Shutter Door Frame Machinery 4KW Hydraulic Station Power
4. Main Technical Parameters

1. Suitable material	Color steel sheet , galvanized steel sheet,aluminum sheet
2. Installation Dimension (LWH):	6.5m1.5m1.4m
3. Main motor power	4KW with Cycloidal reducer
4. Hydraulic station power	4KW
5. Hydraulic oil pump	CB-E 310
6. Thickness of material	0.3mm~1.0mm
7. Diameter of principal axis	Φ70-90mm
8. Material expand width	1000-1250mm
9. Electric tension	380V 3phase 50HZ or as the customer's requirements
10. Material of roller	High grade 45# forged steel plated with hard chrome plating
11. Controlling system	PLC
12. Processing speed	8-12m/min(glazed tile is 2-3m/min)
13. Processing precision within	1.00mm (depend on design)
14. Material of cutting blade	Cr12 mould steel with quenched treatment
15. Kind of drive	0.6 inch chain link bearing model 6210
16. Roller station	11-20 Rollers
17. Roller material	high grade 45#steel; Cr12 quenching
18. Leak frame load-bearing	4.6T

Packaging & Delivery

Packaging Details	the Packaging Detail of roll forming machine door : Standard and safe export package, suitable for long term sea way shipping Delivery Detail: within 45 working days after down payment received
Delivery Time	within 30 working days after received deposit

FAQ
1) Q:Can you make machine according to my design?
A:Yes, we have experienced technical team to work out the suitable design for you and confirm with you until you agree.
2) Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit.
3) Q:What payment terms you accept?
A:Commonly is TT, 30% deposit and 70% before shipment, and sometimes we can consider more for you as per your request.
4) Q:What is the warranty for our machine?
A:We have one year guarantee, and provide whole life's technical support.

Steel Sheet Roll Forming Machine Shutter Door Frame Machinery 4KW Hydraulic Station Power
