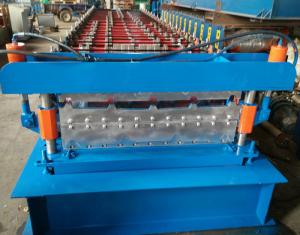

Ppgi Gi Trapezoidal Roof Sheet Ibr Roll Forming Machine 15m/Min

Model Number : floor decking Machine

Certification : CE

MOQ : 1 set

Price : on discuss

Payment Terms : T/T, L/C, Western Union

Supply Ability : 20 sets per month

Delivery Time : 30 days after receiving deposit

Packaging Details : the Packaging Detail of roll forming machine door : Standard and safe export package, suitable for long term sea way shipping Delivery Detail: within 45 working days after down payment received

Model NO. : EN-130JK

Material Thickness : 0.4-0.7mm

Rolling Speed : 6-15m/Min

Roller Stations : 14 Stations

Hydraulic Cutting Power : 5.5kw

Material of Shaft : 45 Steel

Transport Package : Plastic Film, Container

HS Code : 845522100

Contact Now

Steel Roofing Sheet Roll Forming Machine PPGI GI IBR Trapezoid , Roof Sheet Rolling Machinery

Product Description

Working flow
Ppgi Gi Trapezoidal Roof Sheet Ibr Roll Forming Machine 15m/Min

Machine components

No.	Name	Qty
1.	De-coiler	1 Set
2.	Roll Forming Machine	1 Set
3.	Hydraulic Cutting Device	1 Set
4.	PLC Control Box	1 Set
5.	Hydraulic Pump	1 Set
6.	Output table	1 Set

Decoiler

Type	Manual type(standard)	Hydraulic type(option)
Width	1250mm	1500mm
Capacity	Max 5tons	From 5-15 tons
Inner diameter	φ508-610mm	φ508-610mm
Outer diameter	φ1500mm	φ1800mm

roll forming

(1) Material Thickness: 0.3-0.8mm
(2) Rollers: 11Groups
(3) Material for Rollers: 45# steel polished and coated with chrome HRC55-60°
(4) Material for shaft: high grade No.45 steel after treatment
(5) Diameter of shaft: 70mm
(6) Frame panel thickness: 14mm
(7) Bottom frame: 36# H-section steel
(8) Motor Power:3kw
(9) Driven type: 0.6＂Chain

Cutting

Type	bearing sliding type
Blade material	Cr12mov quenching and grinding
Frame processing	the whole bottom frame is grinding for high-precision
Blade processing	wire-electrode cutting, but the upper balde can not be straight. this is technology
Working	Hydraulic type

Stacker

Type	Manual	Auto(option)
Length	1.5m-2m	6m or 12m

PLC

Main item	Parameter detail
PLC	Delta(standard) or according to your request
Inverter	China brand(standard) or according to your request
Touch screen	Mcgs(standard) or according to your request
Encoder	China brand(standard) or according to your request
Voltage/HZ/Phase	380v/50-60hz/3phase

Hydraulic pump

Main Item	Parameter detail
Motor	3kw China brand or according to your request
Pump	China brand or according to your request
Solenoid valve	China brand or according to your request
Cooling system	Cooling fan

FAQ

1) Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

2) Q: How do your machines compare with other big companies in this market?
A: We are up to date with the latest technology and improve our machines accordingly
