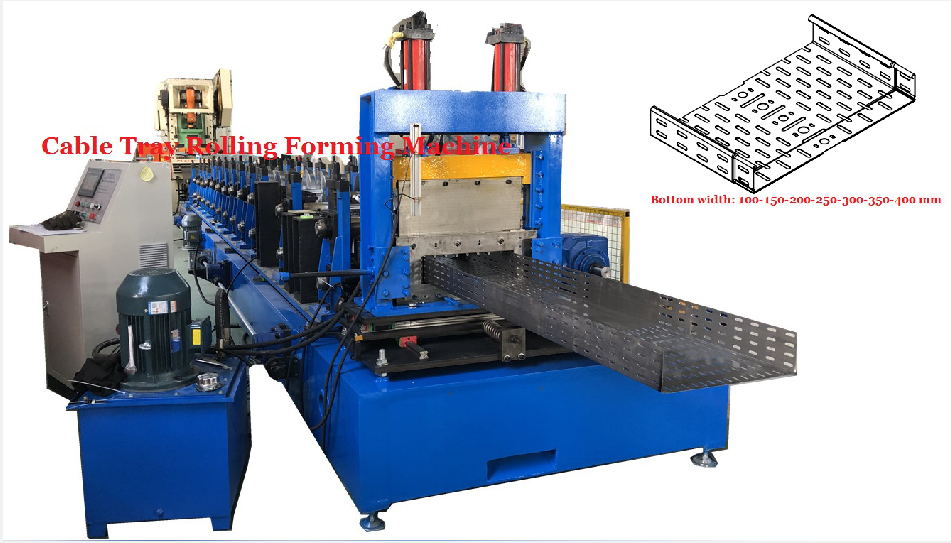

Cable Tray Roll Forming Machine- Heavy Duty Type
Cable Tray Roll Forming Machine- Heavy Duty Type is designed to make the cable trays in batch fully automatically which are manufactured with the same load bearing capabilities of thicker trays, but are made by molding sheet metal into a more robust design. Cable tray can be used internally and externally in the buildings due to its high corrosion resistance which can offer lighter and more economic solutions when compared to heavy duty type cable trays. Cable tray are designed to carry the wiring installations internally or externally in factories and buildings, especially in humid, moist or corrosive environments. They can also be manufactured as pre-galvanized upon request. Here I will share some drawing profiles and then show you how we design the cable tray machines.

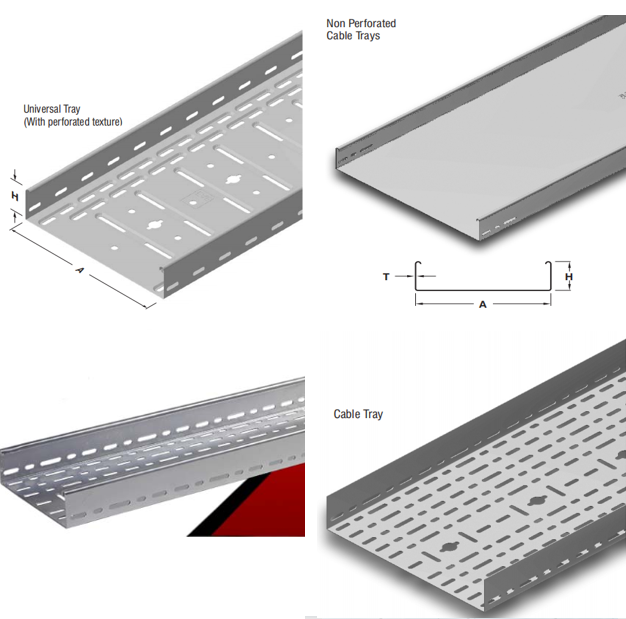

Hot Dip Galvanized Type Cable Tray
It has many types, here I listed some of them, we can design the machines according to customer drawing profiles.
Cable Tray Roll Forming Machine- Heavy Duty Type

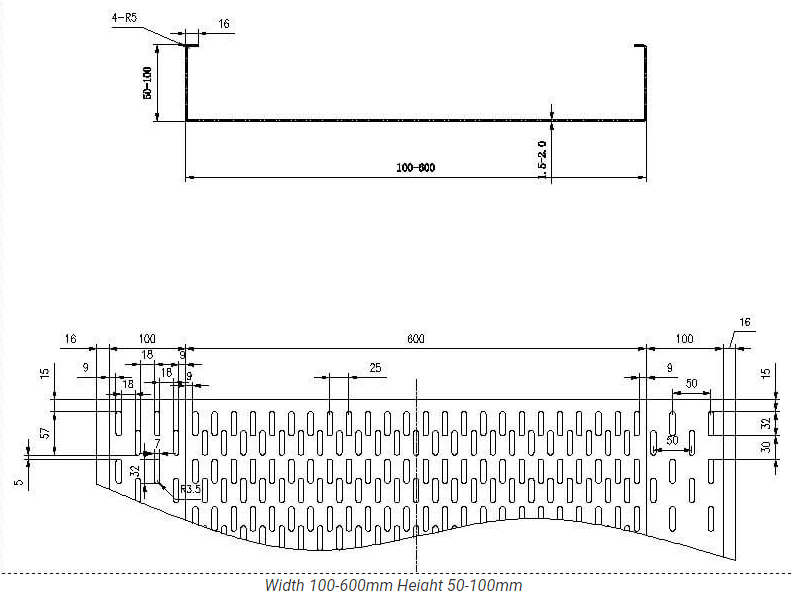

Heavy duty types means, it can process the thickness to 2.0mm. Out factory can make different types cable tray rolling forming machines, for example cable tray width from 100-600mm, height from 50-100mm. it is easy to change size by moving whole line rollers and cut blade positions.
The machine of cable tray forming machines is composed by the following elements:
decoil material-leveling-punch-forming -cutting
Main features of cable forming machines
gearbox move the cable tray lines
roller material CR12 mould
solid shaft diameter 90mm
punch capicity315ton
machine weight about 50 ton
Application of cable tray
Where to use of the cables:
The cable tray system is used to support insulated electrical cables used for power distribution, control, and communication. Cable trays are used as an alternative to open wiring or electrical conduit systems, and are commonly used for cable management in commercial and industrial construction
Besides such whole piece cable tray, we also have ladder type cable tray, or T shape cable tray
Cable Tray Roll Forming Machine- Heavy Duty Type Working Video for your reference:
