Metal profile rolling machine for drywall and ceiling for USA market
Metal profile rolling machine for drywall and ceiling for USA market is designed to make various types stud, track metal profiles and others. Slotted Track and Seismic Drift Track are the
industry preferred systems for achieving head-of-wall deflection, drift, and fire rating for interior and exterior walls. Silent Steel Framing System stud and track also for Narrower Walls - Which Means More Usable Square Feet . Lower Material Costs - No CRC, Thinner Steel, Smaller Web
In the following part, I will list some of them profiles and showing you how the machines are designed.

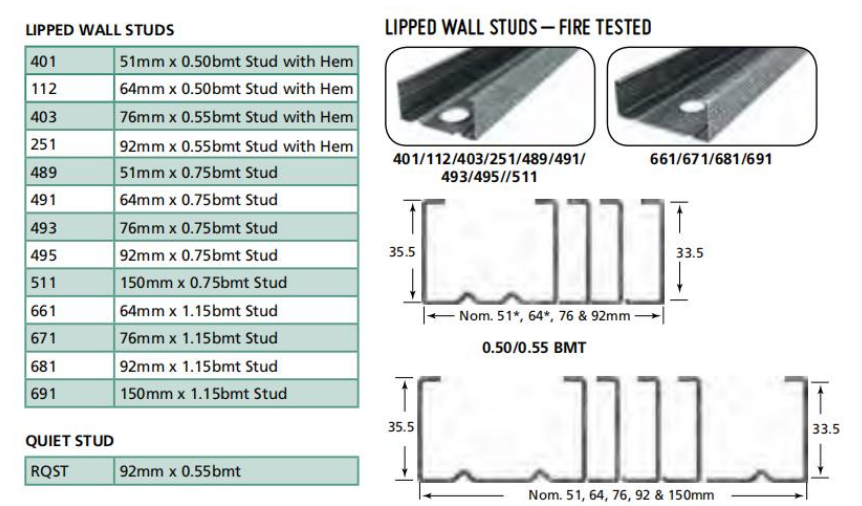

Steel Framing Studs, Track, and Furring, corner stud

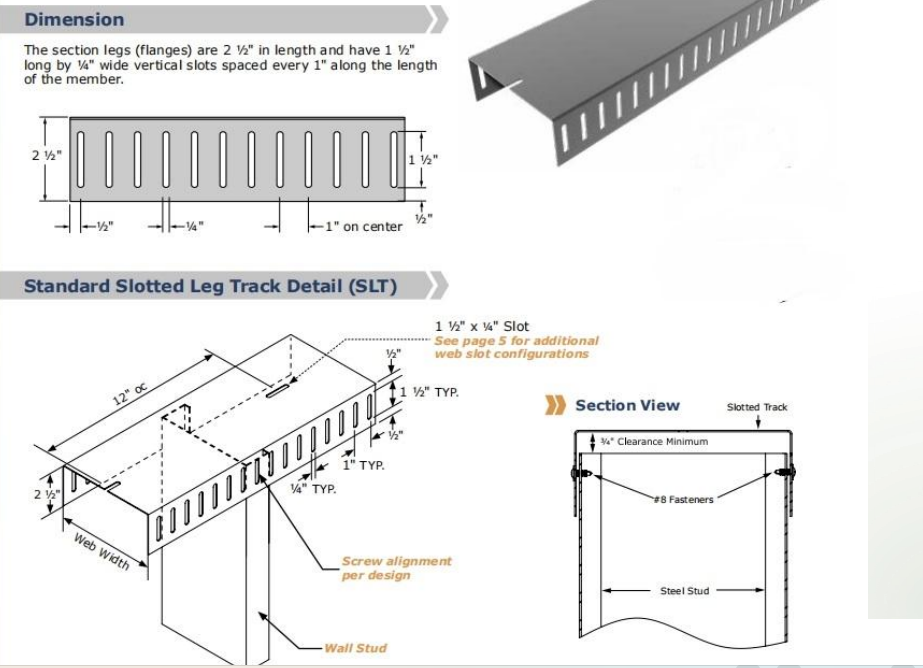

Slotted Track profile:
And here other popular designs for your reference and the rolling forming machine types we could make:
1. Stud and track rolling forming machine
2. Structural stud rolling machine
3. Resilient furring channel rolling machine
4. Wall angle profile rolling machine
5. Drywall furring channel rolling machine
6. Z furring channel rolling machine
As to the metal profiles rolling forming machine designs, we can design in the following types:
1. High speed machine like 70 to 120 meter per minute profile rolling forming machine. It can be designed with high speed double head decoiler, high speed rolling forming machines and high speed also fully automatic stackers.
2. Combined type rolling machine. Two in one, two profiles with one machine for saving workers and space but still can run in high speed.
3. Normal speed machine with more economic cost.
How to get the accurate quotation?
1. Please share the accurate drawing profile with punching holes design , ribs and dotting types and then we can know how to design machine for you.
2. Please choose the speed range you need and the automatic degree you need and then we can match the elements you need.
3. If you know the application where to use, please tell us. When designing machine and then we can know how to match other profiles to design.
